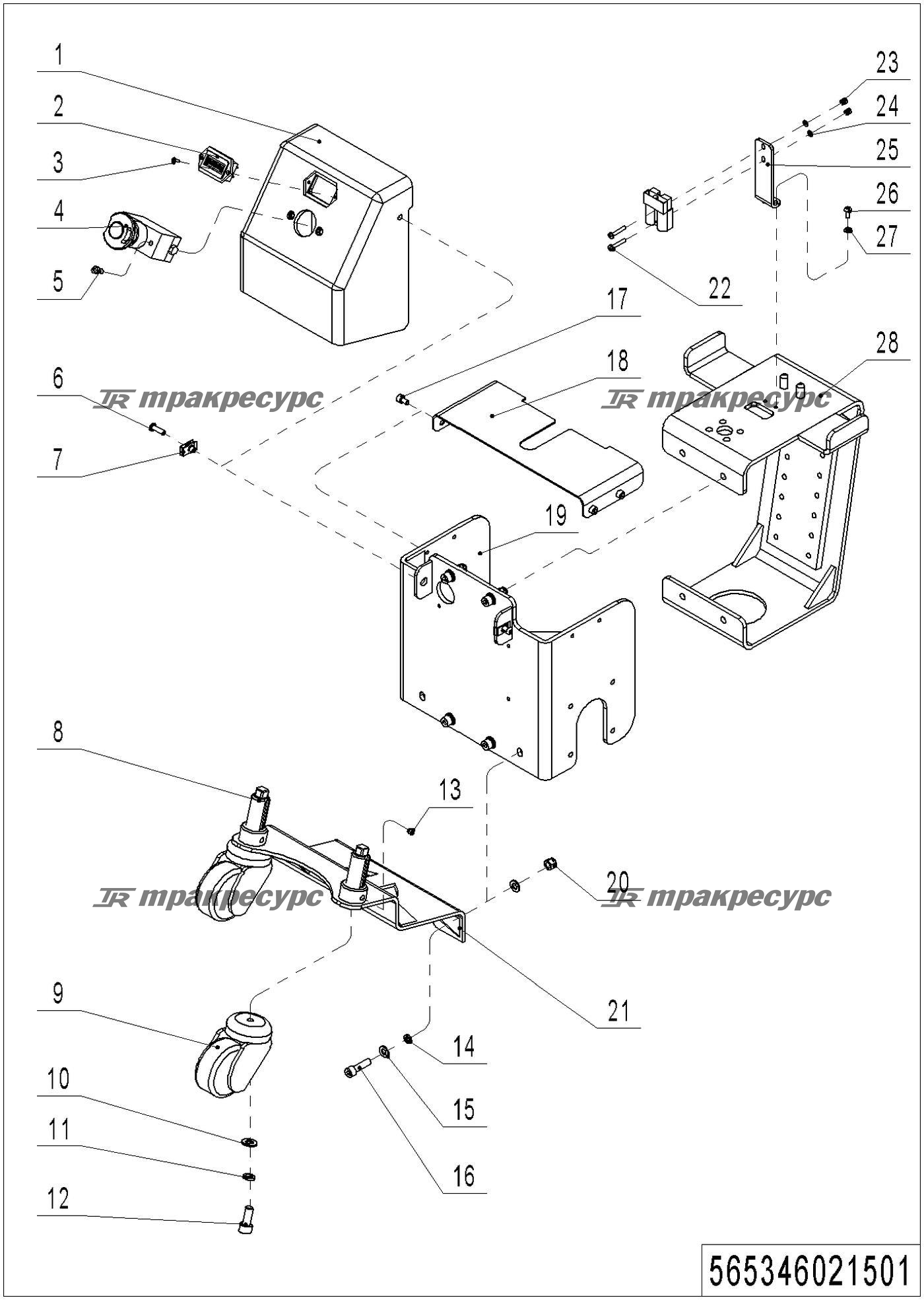

Noblelift TE10 Шасси 565346021501
| № | Наименование | Артикул |
|---|---|---|
| 1 | Electric Cabinet | 565310020000 |
| 2 | Battery Indicator | 921100100036 |
| 2 | Battery Indicator | 921100100007 |
| 2 | Battery Indicator | 921100100061 |
| 3 | Screw | 910200300002 |
| 4 | Emergency Button | 920200100003 |
| 5 | Screw | 910200200021 |
| 6 | Screw | 910200300019 |
| 7 | Cage Nut | 940400400001 |
| 8 | Screw | 565321520014 |
| 9 | Caster | 940300601033 |
| 10 | Flat Washer | 910400100007 |
| 11 | Spring Washer | 910400500007 |
| 12 | Screw | 910200200076 |
| 13 | Screw | 910201000009 |
| 14 | Flat Washer | 910400100006 |
| 15 | Spring Washer | 910400500006 |
| 16 | Screw | 910200200059 |
| 17 | Screw | 910200300016 |
| 18 | Protective Cover | 565321520012 |
| 19 | Frame | 565321510000 |
| 20 | Nut | 910300500004 |
| 21 | Bracket | 565321510002 |
| 22 | Screw | 910200500027 |
| 23 | Nut | 910300500001 |
| 24 | Flat Washer | 910400100003 |
| 25 | Mounting Plate | 565321520008 |
| 26 | Screw | 910200300012 |
| 27 | Flat Washer | 910400100004 |
| 28 | Bracket | 565321510001 |
