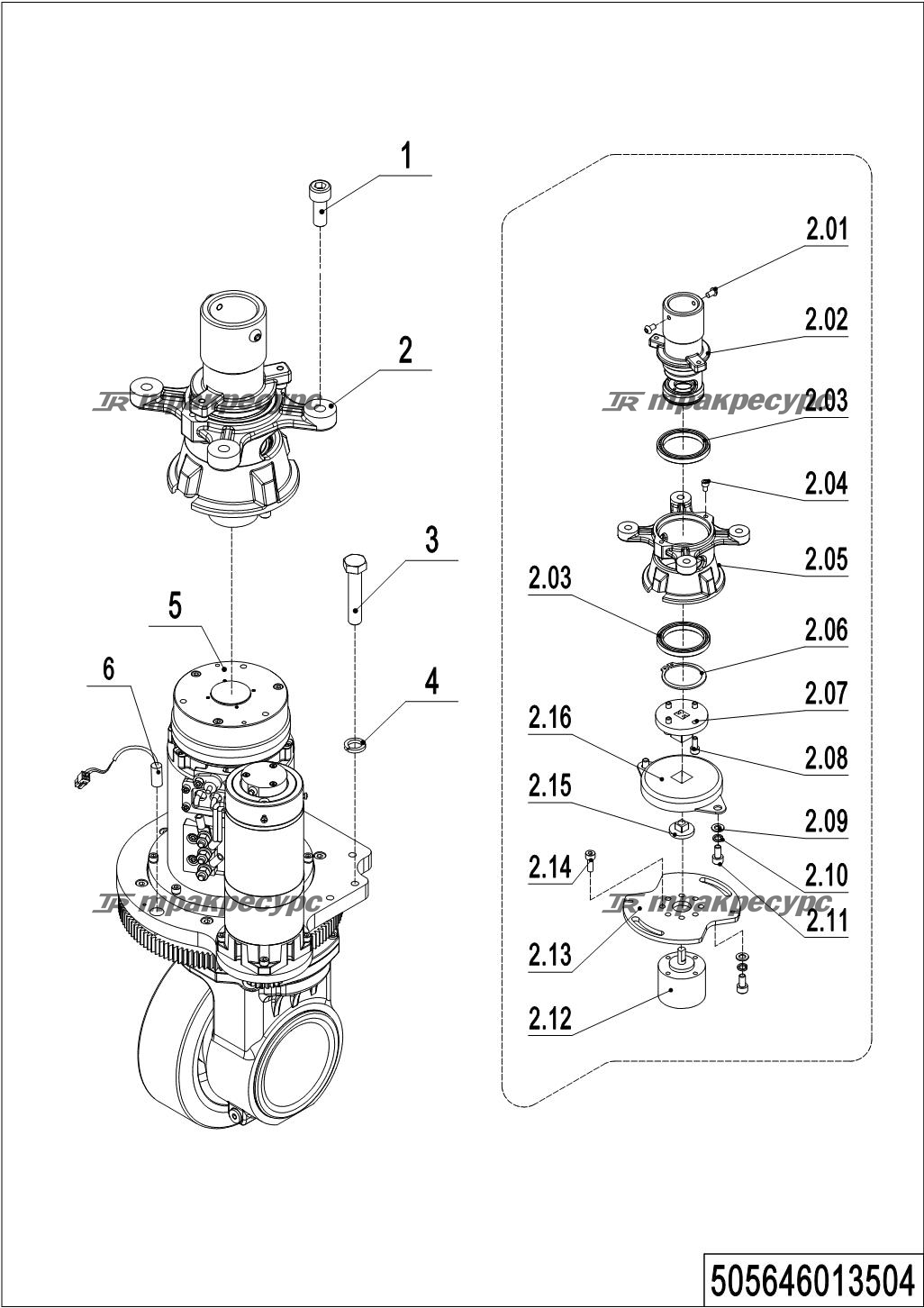

Noblelift PTB20-C Приводный блок-EPS 505646013504
| № | Наименование | Артикул |
|---|---|---|
| 1 | Screw | 910200200075 |
| 2 | Electronic Steering | 505698510027 |
| 2.01 | Assembly Screw | 910200300016 |
| 2.02 | Bracket | 505631520001 |
| 2.03 | Bearing | 910700200041 |
| 2.04 | Screw | 910200200032 |
| 2.05 | Fixing Base | 505631520002 |
| 2.06 | Circlip | 910401300024 |
| 2.07 | Link Block | 505631520005 |
| 2.08 | Screw | 910200200014 |
| 2.09 | Flat Washer | 910400100004 |
| 2.10 | Spring Washer | 910400500004 |
| 2.11 | Screw | 910200200022 |
| 2.11 | Screw | 910200200023 |
| 2.12 | Potentiometer | 506733510000 |
| 2.12 | Potentiometer | 505633010028 |
| 2.13 | Mounting Plate | 535931520002 |
| 2.13 | Mounting Plate | 505731520001 |
| 2.14 | Screw | 910200500022 |
| 2.15 | Link Block | 505931520002 |
| 2.15 | Link Block | 505631520003 |
| 2.16 | Rotary Damper | 940801200001 |
| 2.16 | Rotary Damper | 940801200005 |
| 3 | Bolt | 910100300041 |
| 4 | Spring Washer | 910400500007 |
| 5 | Drive Unit | 961000500000 |
| 6 | Sensor | 921800100001 |
