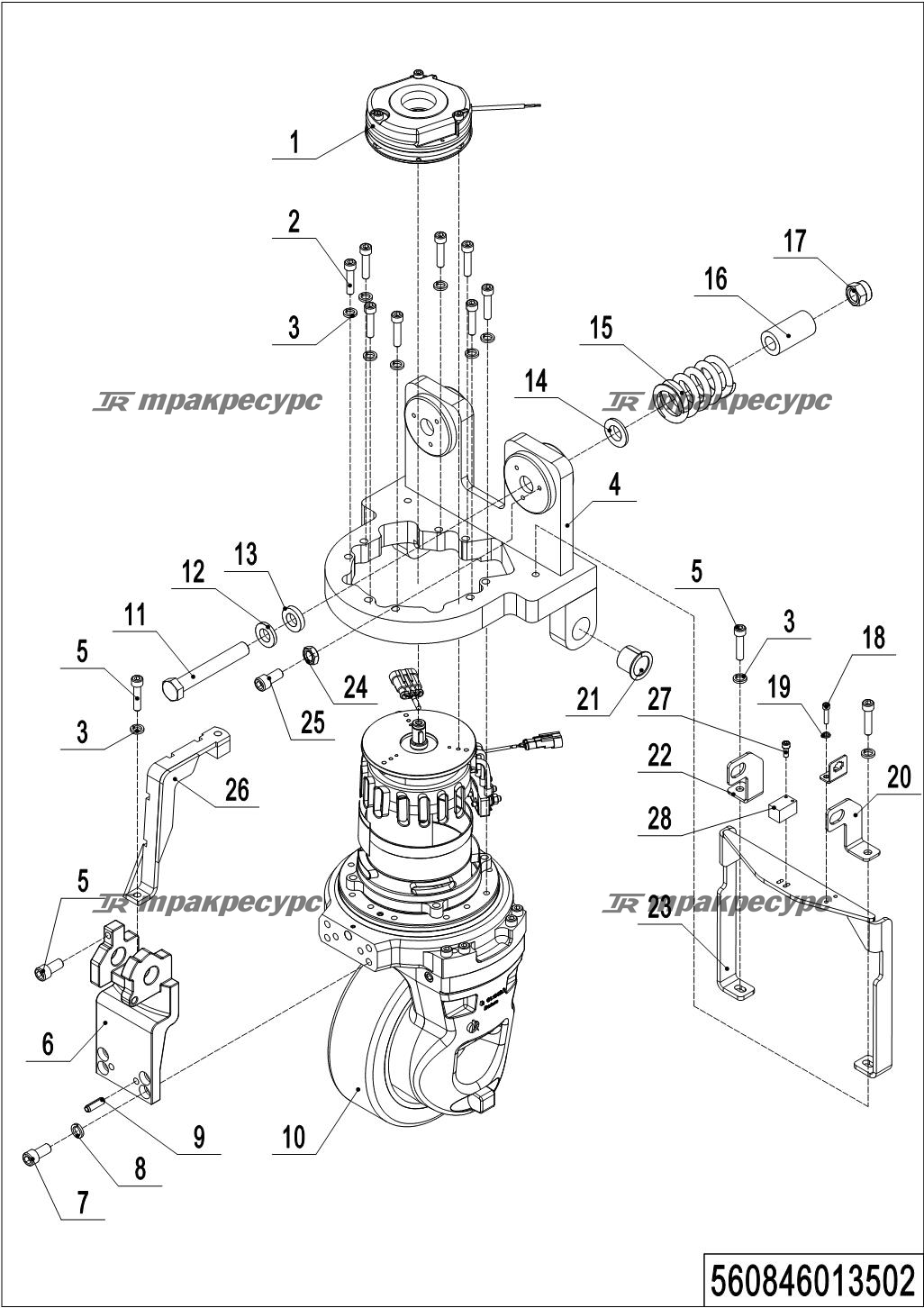

Noblelift PT20D-PT20I_D Приводный блок - ручное рулевое управление 560846013502
| № | Наименование | Артикул |
|---|---|---|
| 1 | Brake | 940700100001 |
| 2 | Screw | 910200200060 |
| 3 | Spring Washer | 910400500006 |
| 4 | Wheel Mount | 560813510000 |
| 5 | Screw | 910200200055 |
| 6 | Bracket | 534713520001 |
| 7 | Screw | 910200200075 |
| 8 | Spring Washer | 910400500007 |
| 9 | Spring Pin | 910600400044 |
| 10 | Drive Unit | 940900400002 |
| 11 | Bolt | 910200200174 |
| 12 | Flat Washer | 910400100010 |
| 13 | Crash Pad | 560813520013 |
| 14 | Washer | 271515520003 |
| 15 | Spring | 560813520008 |
| 16 | Stop Sleeve | 560813520005 |
| 17 | Nut | 910300500008 |
| 18 | Screw | 910200200013 |
| 19 | Spring Washer | 910400500003 |
| 20 | Mounting Plate | 560813520007 |
| 21 | Bushing | 940500200011 |
| 22 | Mounting Plate | 560813520006 |
| 23 | Mounting Rack | 560813510002 |
| 24 | Screw | 910200200034 |
| 25 | Nut | 910300300003 |
| 26 | Fixing Mount | 560813510001 |
| 27 | Screw | 910200200005 |
| 28 | Proximity Switch | 920200400001 |
