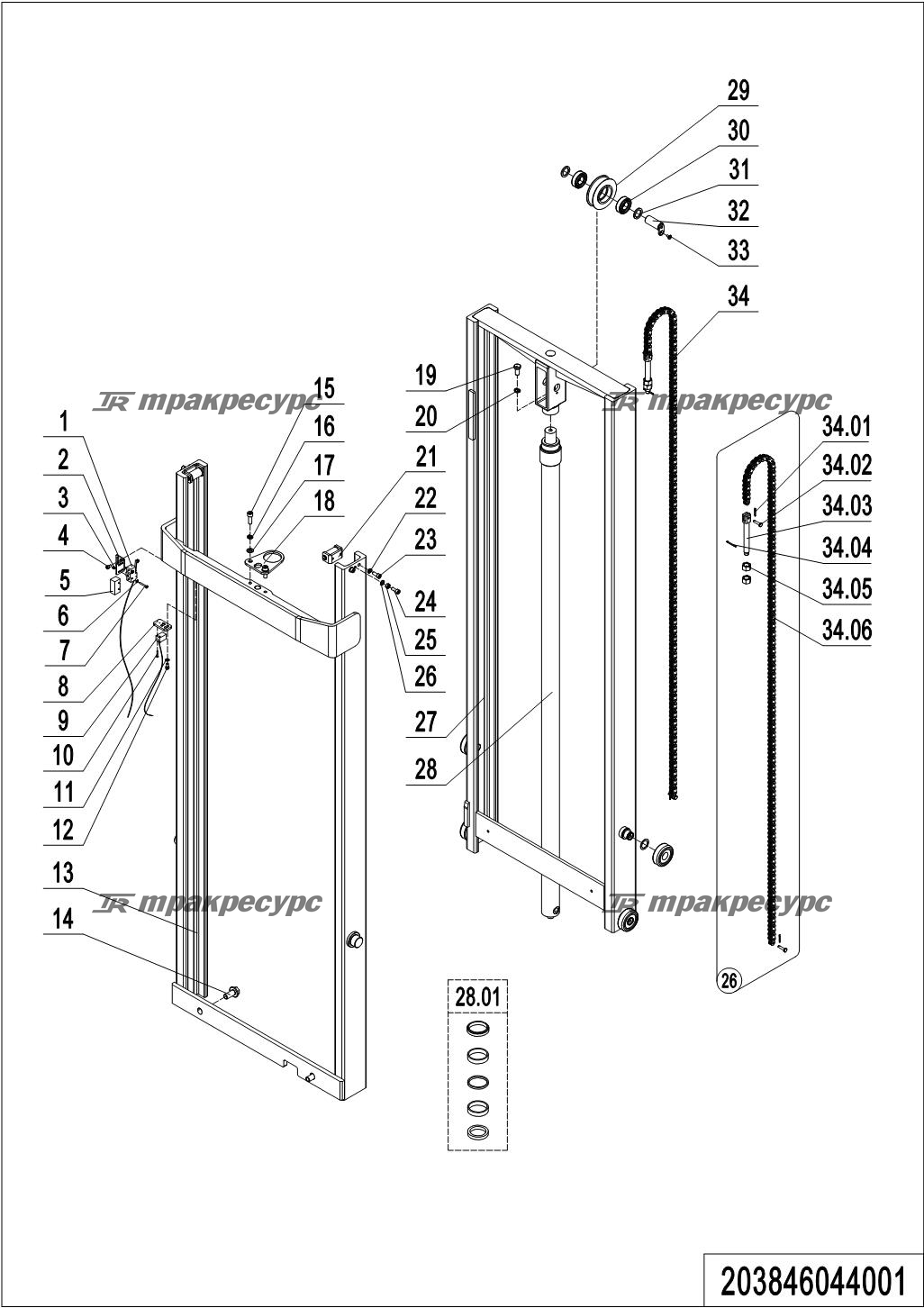

Noblelift PSE06xCB Двухступенчатая мачта 203846044001
| № | Наименование | Артикул |
|---|---|---|
| 1 | Microswitch | 920200300003 |
| 2 | Mounting Plate | 532244020012 |
| 3 | Nut | 910300500001 |
| 4 | Screw | 910200200032 |
| 5 | Protective Cover | 920200300007 |
| 6 | Flat Washer | 910400100003 |
| 7 | Screw | 910200500028 |
| 8 | Mounting Plate | 532244020029 |
| 9 | Proximity Switch | 920200400028 |
| 10 | Screw | 910200500015 |
| 11 | Flat Washer | 910400100005 |
| 12 | Screw | 910200200033 |
| 13 | Outer Mast(2600) | 203844010001 |
| 13 | Outer Mast(2900) | 203844010002 |
| 13 | Outer Mast(3200) | 203844010000 |
| 14 | Bolt | 910100800005 |
| 15 | Screw | 910200200077 |
| 16 | Flat Washer | 910400100007 |
| 17 | Spring Washer | 910400500007 |
| 18 | Fixing Plate | 532244020027 |
| 19 | Bolt | 910100300049 |
| 20 | Spring Washer | 910400500008 |
| 21 | Roller | 400244010002 |
| 22 | Spring Washer | 910400500006 |
| 23 | Screw | 910200200055 |
| 24 | Flat Washer | 910400100006 |
| 25 | Nut | 910300100006 |
| 26 | Screw | 910200200057 |
| 27 | Inner Mast(2600) | 532244010018 |
| 27 | Inner Mast(2900) | 532244010003 |
| 27 | Inner Mast(3200) | 532244010013 |
| 28 | Cylinder | 532244010016 |
| 28 | Cylinder | 532244010001 |
| 28 | Cylinder | 532244010009 |
| 28.01 | Seal Kits | 532298510002 |
| 29 | Sprocket | 940200400005 |
| 30 | Bearing | 910700200020 |
| 31 | Washer | 203844020002 |
| 32 | Pin | 533243510005 |
| 33 | Screw | 910200400016 |
| 33 | Chain | 203844010007 |
| 33 | Chain | 203844010009 |
| 34 | Chain | 203844010003 |
| 34.01 | Cotter Pin | 910600600026 |
| 34.02 | Chian Pin | 271544020108 |
| 34.03 | Chain Anchor | 271544020107 |
| 34.04 | Cotter Pin | 910600600030 |
| 34.05 | Nut | 910300200008 |
| 34.06 | Chain | 203844010008 |
| 34.06 | Chain | 203844010010 |
| 34.06 | Chain | 203844010004 |
