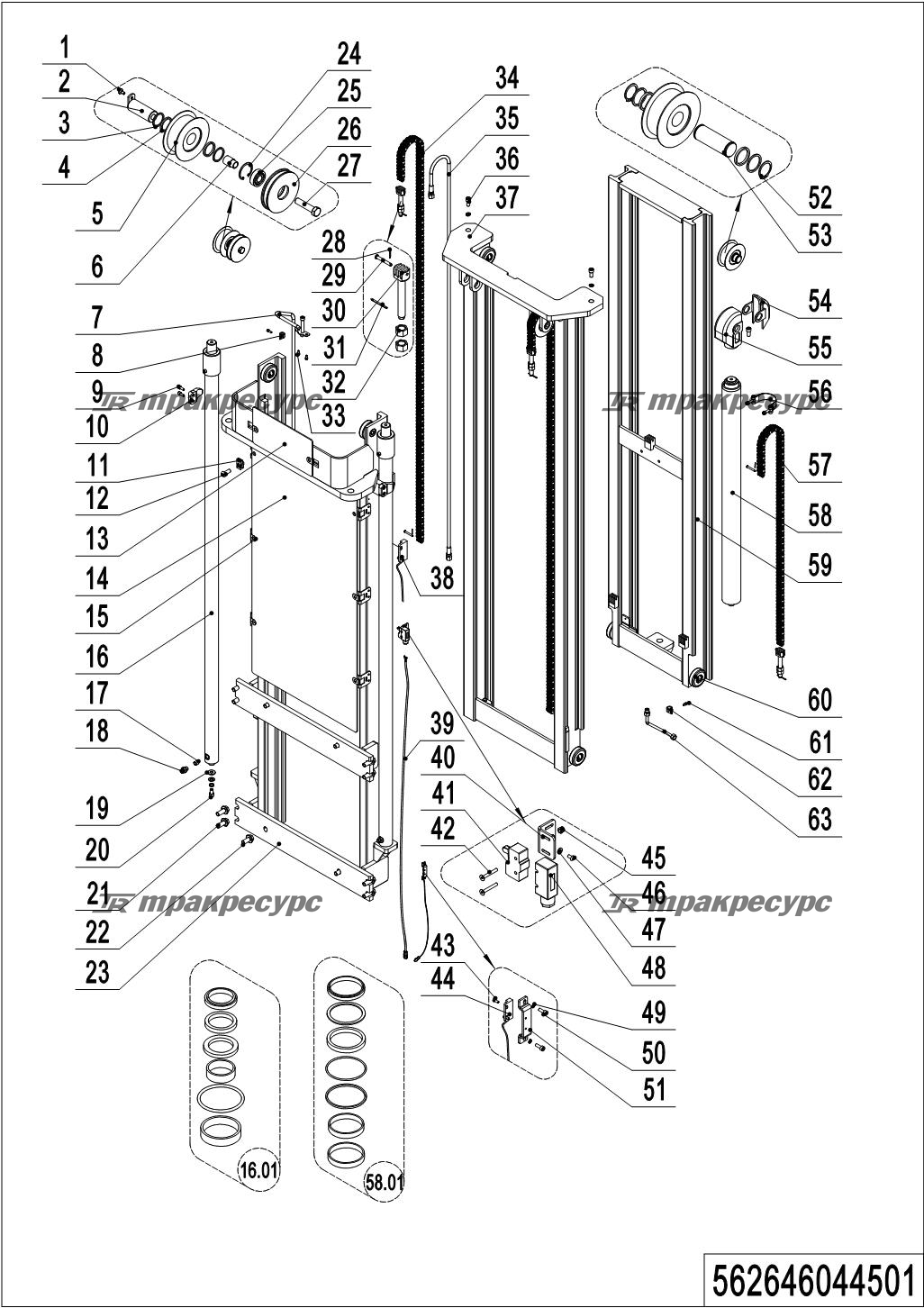

Noblelift PS16DN Трехступенчатая мачта, FFL 562646044501
| № | Наименование | Артикул |
|---|---|---|
| 1 | Screw | 910200400016 |
| 2 | Pin | 533544510006 |
| 3 | Washer | 940600500009 |
| 4 | Washer | 940600500008 |
| 5 | Sprocket Bearing | 940200500010 |
| 6 | Sleeve | 535944520001 |
| 7 | Steel Tube | 534744510023 |
| 7 | Steel Tube | 534744510021 |
| 7 | Steel Tube | 534744510020 |
| 8 | Hose Clamp | 951000100001 |
| 9 | Screw | 910200200057 |
| 10 | Fixing Plate | 275044020076 |
| 11 | Cage Nut | 940400400003 |
| 12 | Screw | 941100100005 |
| 13 | Guard Plate | 534744520037 |
| 14 | Guard Plate | 534744520038 |
| 14 | Guard Plate | 534744520041 |
| 14 | Guard Plate | 534744520039 |
| 15 | Spring Buckle | 940400300001 |
| 15 | Spring Buckle | 940400300001 |
| 16 | Cylinder | 534744510019 |
| 16 | Cylinder | 534744510017 |
| 16 | Cylinder | 534744510016 |
| 16.01 | Seal Kit | 534798510000 |
| 17 | Safety Valve | 950600300001 |
| 18 | Joint | 950400400003 |
| 19 | Subplate | 534744520015 |
| 20 | Screw | 910200200096 |
| 21 | Bolt | 910100800006 |
| 22 | Bolt | 910100800005 |
| 23 | Outer Mast(4000) | 534744510039 |
| 23 | Outer Mast(4300) | 534744510037 |
| 23 | Outer Mast(4600) | 534744510030 |
| 24 | Circlip | 910401400013 |
| 25 | Bearing | 910700200019 |
| 26 | Pulley | 535944520000 |
| 27 | Bolt | 910100100073 |
| 28 | Cotter Pin | 910600600006 |
| 29 | Pin | 941100800012 |
| 30 | Chain Bolt | 941300100008 |
| 31 | Cotter Pin | 910600600023 |
| 32 | Nut | 910300200008 |
| 33 | Screw | 910200400006 |
| 34 | Chain | 534744510047 |
| 34 | Chain | 534745010009 |
| 34 | Chain | 534145010005 |
| 35 | Hose | 534744520043 |
| 35 | Hose | 532644520143 |
| 35 | Hose | 532644520144 |
| 37 | Screw | 910200200097 |
| 37 | Middle Mast(4000) | 534744510040 |
| 37 | Middle Mast(4300) | 534744510038 |
| 37 | Middle Mast(4600) | 534744510031 |
| 38 | Magnetic Switch | 562633510003 |
| 39 | Wire Harness | 562633010003 |
| 40 | Fixing Plate | 534744520036 |
| 41 | Microswitch | 920200300001 |
| 42 | Screw | 910200400007 |
| 43 | Screw | 910200500021 |
| 44 | Magnetic Switch | 562633510002 |
| 45 | Nut | 910300500001 |
| 46 | Screw | 910200500021 |
| 47 | Flat Washer | 910400100003 |
| 48 | Protective Cover | 920200300008 |
| 49 | Spring Washer | 910400500003 |
| 50 | Screw | 910200300006 |
| 51 | Protective Cover | 534744520080 |
| 52 | Circlip | 910401300016 |
| 53 | Axle | 532644520037 |
| 54 | Side Cover | 532644520036 |
| 55 | Yoke | 532644520035 |
| 56 | Hoop | 940800600002 |
| 57 | Chain | 532644510075 |
| 57 | Chain | 532644510077 |
| 57 | Chain | 251044510096 |
| 58 | Cylinder | 534744510045 |
| 58 | Cylinder | 534744510015 |
| 58 | Cylinder | 534744510013 |
| 58 | Cylinder | 534744510012 |
| 58.01 | Seal Kit | 534798510001 |
| 59 | Inner Mast(4000) | 534744510011 |
| 59 | Inner Mast(4300) | 534744510009 |
| 59 | Inner Mast(4600) | 534744510008 |
| 60 | Compound Roller | 940200300004 |
| 61 | Screw | 910200200032 |
| 62 | Hose Clamp | 951000100003 |
| 63 | Steel Tube | 533544520006 |
