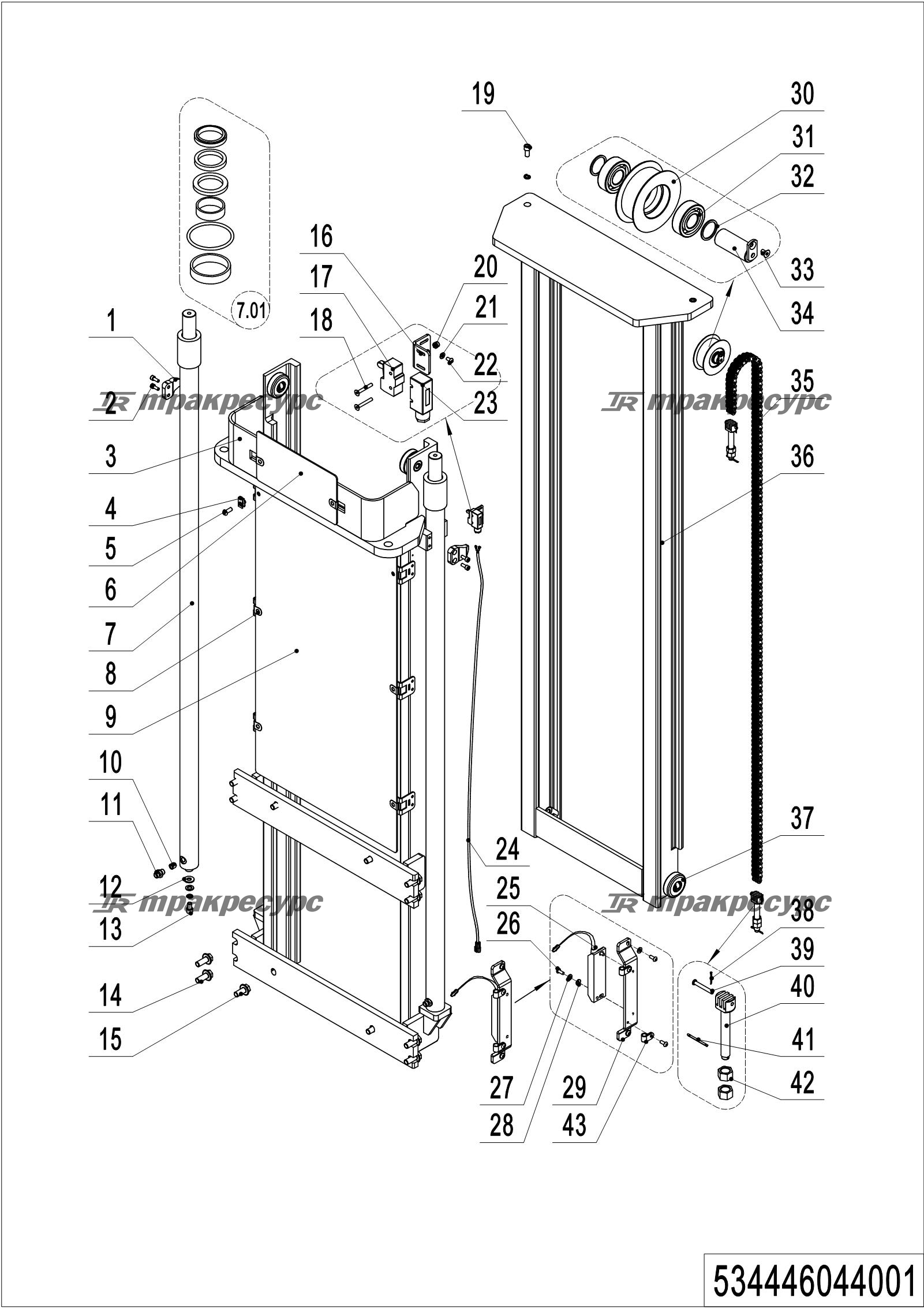

Noblelift PS12L-PS12L Двухступенчатая мачта стандартного подъема 534446044001
| № | Наименование | Артикул |
|---|---|---|
| 1 | Fixing Plate | 275044020076 |
| 2 | Screw | 910200200057 |
| 3 | Outer Mast(2900) | 534444010013 |
| 3 | Outer Mast(3200) | 534444010011 |
| 3 | Outer Mast(3600) | 534444010009 |
| 4 | Cage Nut | 940400400003 |
| 5 | Screw | 941100100005 |
| 6 | Guard Plate | 534744520037 |
| 7 | Cylinder | 534444010008 |
| 7 | Cylinder | 534444010007 |
| 7 | Cylinder | 534444010006 |
| 7.01 | Seal Kit | 534498510002 |
| 8 | Spring Buckle | 940400300001 |
| 8 | Spring Buckle | 940400300001 |
| 9 | Guard Plate | 534744020011 |
| 9 | Guard Plate | 534744520038 |
| 9 | Guard Plate | 534744020006 |
| 10 | Safety Valve | 950600300001 |
| 11 | Joint | 950400400003 |
| 12 | Sub plate | 534744520015 |
| 13 | Screw | 910200200096 |
| 14 | Bolt | 910100800006 |
| 15 | Bolt | 910100800005 |
| 16 | Fixing Plate | 534744520036 |
| 17 | Micro switch | 920200300001 |
| 18 | Screw | 910200400007 |
| 19 | Screw | 910200200097 |
| 20 | Nut | 910300500001 |
| 21 | Flat Washer | 910400100003 |
| 22 | Screw | 910200300005 |
| 23 | Protective Cover | 920200300008 |
| 24 | Wire Harness | 534733010011 |
| 24 | Wire Harness | 534733010013 |
| 24 | Wire Harness | 534733010016 |
| 25 | Switch | 535933510005 |
| 25 | Switch | 534433510001 |
| 26 | Screw | 910200500010 |
| 26 | Screw | 910200500021 |
| 27 | Washer | 910400500003 |
| 28 | Washer | 910400100003 |
| 29 | Protective Cover | 534744520059 |
| 29 | Protective Cover | 534744520080 |
| 30 | Sprocket | 940200400006 |
| 31 | Bearing | 910700200021 |
| 32 | Washer | 940600500008 |
| 33 | Screw | 910200400016 |
| 34 | Pin | 533544510006 |
| 35 | Chain | 534444010024 |
| 35 | Chain | 534444010026 |
| 35 | Chain | 534444010025 |
| 36 | Inner Mast(2900) | 534444010014 |
| 36 | Inner Mast(3200) | 534444010012 |
| 36 | Inner Mast(3600) | 534444010010 |
| 37 | Compound Roller | 940200300001 |
| 38 | Cotter Pin | 910600600006 |
| 39 | Pin | 941100800005 |
| 40 | Chain Anchor | 533244020020 |
| 41 | Cotter Pin | 910600600023 |
| 42 | Nut | 910300200008 |
| 43 | Cable fixer | 921300200001 |
